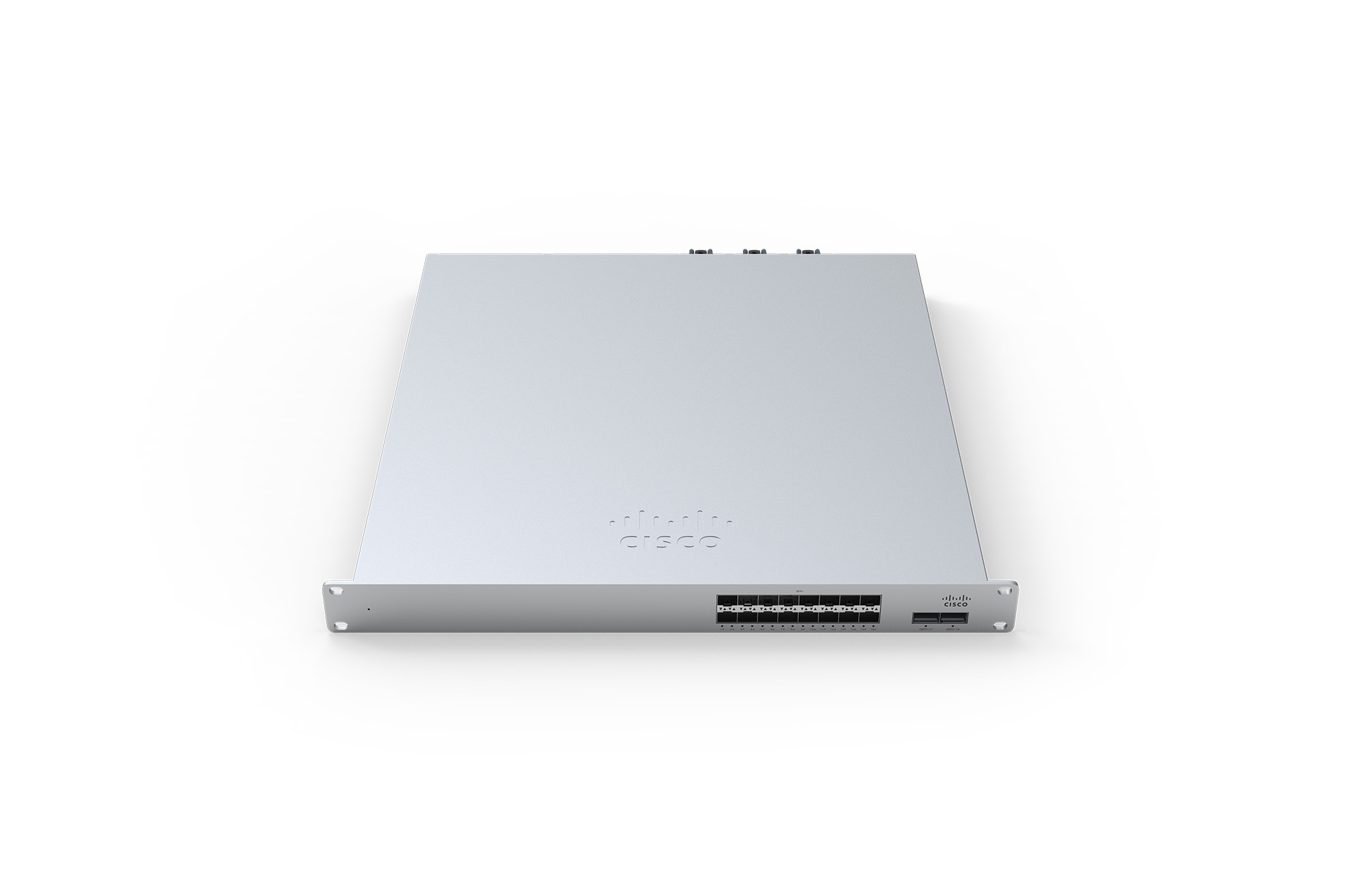

Meraki MS425 16 L3 Cld Mngd 16x 10G SFP+ Switch
Original price was: $39,385.26.$23,030.94Current price is: $23,030.94.
Recommended professional services for this product (we’ll contact you to discuss)
Cisco Meraki Switching Services
Build a resilient, cloud-managed network backbone with Cisco Meraki switches. We design and deploy tailored switching solutions to support your business operations, ensure performance, and simplify network management.
From smart Layer 2/3 design and PoE planning to security, compliance, and future scalability, we deliver more than just hardware setup — we deliver intelligent infrastructure.
Ideal for offices, warehouses, healthcare, education, and more.
Field Services
Deploy, support, and maintain your Cisco Meraki infrastructure with confidence through our expert Field Services. We provide on-site assistance across Australia to ensure your network hardware is installed and operating correctly from day one.
From structured cabling and hardware installations to troubleshooting and emergency callouts, our certified technicians work directly with your team or end users to deliver consistent, high-quality outcomes.
Ideal for businesses, retail chains, educational institutions, and remote offices needing professional, hands-on support for their Meraki solutions—nationwide.
OverviewÂ
The Cisco Meraki 425 series extends cloud management across the aggregation layer for medium-size networks with our 10/40G fibre aggregation switches. As with our access layer switches, our aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility, traditionally found in enterprise-class switches.
Available in 2 different port densities, 16 or 32 x 10G SFP+, both of which include 2 × 40G QSFP+ uplink/stacking ports which are capable of providing up to 160Gbps stacking bandwidth to support campus environments.
FeaturesÂ
|
|
ConfigurationÂ
The basic initial configuration of the MS425 is just as simple as any other model of MS switch. The links below provide additional information and instructions relating to each step in getting the device setup and configured for the first time.
- Claim the device to an Organization on the Meraki Dashboard
- If a Dashboard Organization does not yet exist, Create one
- Add the device to a Dashboard NetworkÂ
- If a Network does not yet exist, Create one first
- Physically connect the device to the local network
- Connect one of the RJ45 ports to existing infrastructure to provide a temporary uplink
- Power on the device and let it check in to the Dashboard
- If necessary, configure a Static IP through the Local Status Page to allow it to communicate with the Meraki Dashboard.
- Allow the device to completely check-in and perform any initial firmware upgrades
- Finish configuring the device from the Meraki Dashboard
Context and ComparisonsÂ
| Description | MS410-32 | MS425-32 |
| 1GbE SFP | 32 | – |
| 10GbE SFP+ | 2 | 32 |
| 40GbE QSFP+ | – | 2 |
| Dedicated Hardware Stack Port | 2 | – |
| Dedicated Management Interface | 1 | 1 |
| Hot Swap Power Supply | Yes, Dual | Yes, Dual |
| Hot Swap Fans | Yes, x2 | Yes, x3 |
| Layer 3 Routing | Yes | Yes |
| Max Switching Capacity | 144Â Gbps | 800Â Gbps |
| Max Stacking Bandwidth | 160 Gbps | 160 Gbps |
Technical Breakdown Â
Note: The maximum MTU on MS425 is 9416 bytes. Meraki Dashboard already includes 22 Bytes for Ethernet Headers and Frame Check Sequence (FCS). Therefore, use MTU value 9394 when configuring from the Dashboard.
Hardware Breakdown
| Description | MS425-16 | MS425-32 |
| 10GbE SFP+ | 16 | 32 |
| 40GbE QSFP+ | 2 | 2 |
| Dedicated Management Interface | 1 | 1 |
| Hot Swap Power Supply | Yes, Dual | Yes, Dual |
| Hot Swap Fans | Yes, x3 | Yes, x3 |
Throughput and Capabilities
| Description | MS425-16 | MS425-32 |
| Layer 3 Routing | Yes | Yes |
| Switching Capacity | 480Â Gbps | 800Â Gbps |
| Stacking Bandwidth | 160 Gbps | 160 Gbps |
Physical
| Description | MS425-16 | MS425-32 |
| Mount Type | 1U Rack Mount | 1U Rack Mount |
| Dimensions (h x w x d) | 1.72 x 19 x 20.67in (4.42cm x 48.44cm x 48.69cm) |
1.72 x 19 x 20.67in (4.42cm x 48.44cm x 48.69cm) |
| Weight | 13.7 lbs (6.2 kg) | 14.00 lbs (6.35 kg) |
| Power Supply | 250W AC | 250W AC |
| Power Load (idle/max) | 98 / 136 W | 98 / 136 W |
| Operating Temperature | 32°F – 104 °F 0°C – 40 °C |
32°F – 104 °F 0°C – 40 °C |
| Humidity | 5% to 95% | 5% to 95% |
TroubleshootingÂ
Common Troubleshooting
My device is connected to the network but not checking in to the Meraki cloud or shows a solid Orange LED.
Confirm that the device is powered on and has a valid IP address that is able to access the Internet. Use the Local Status Page to get more information about the connectivity status of the device such as if it can successfully reach the Local Gateway, Internet, and/or Meraki Cloud servers. If necessary, contact Meraki Support for additional assistance.
My Status LED is blinking WHITEÂ
A blinking WHITE Status LED indicates that the device is in contact with the Dashboard Cloud servers and is performing a firmware update. This can sometimes take 20-45 minutes or more to complete depending on hardware and other factors.
My Status LED is blinking ORANGE
The device is not able to successfully communicate with the Dashboard Cloud servers or there may be a hardware issue with the device. Check the Local Status Page of the device to confirm the status and reach out to Meraki Support for further troubleshooting.
Event LogÂ
The most common Event Log messages and their meaning are listed below.
Port STPÂ change
Indicates the STP state of the port has changed, lists the relevant port number, previous, and new states. Typically accompanied by a ‘Port status change’ event.
Port status Change
Indicates the link state of the port has changed, lists the relevant port number, old, and new state. Always accompanied by a ‘Port STP change’ event.
SFPÂ module inserted/removedÂ
Indicates that an SFP module was either inserted or removed, includes SFP module information for inserted events and always lists the relevant port number.
Common Stacking Alerts
View our dedicated Switch Stacking document for more detailed information about configuring a Switch Stack and common issues.
